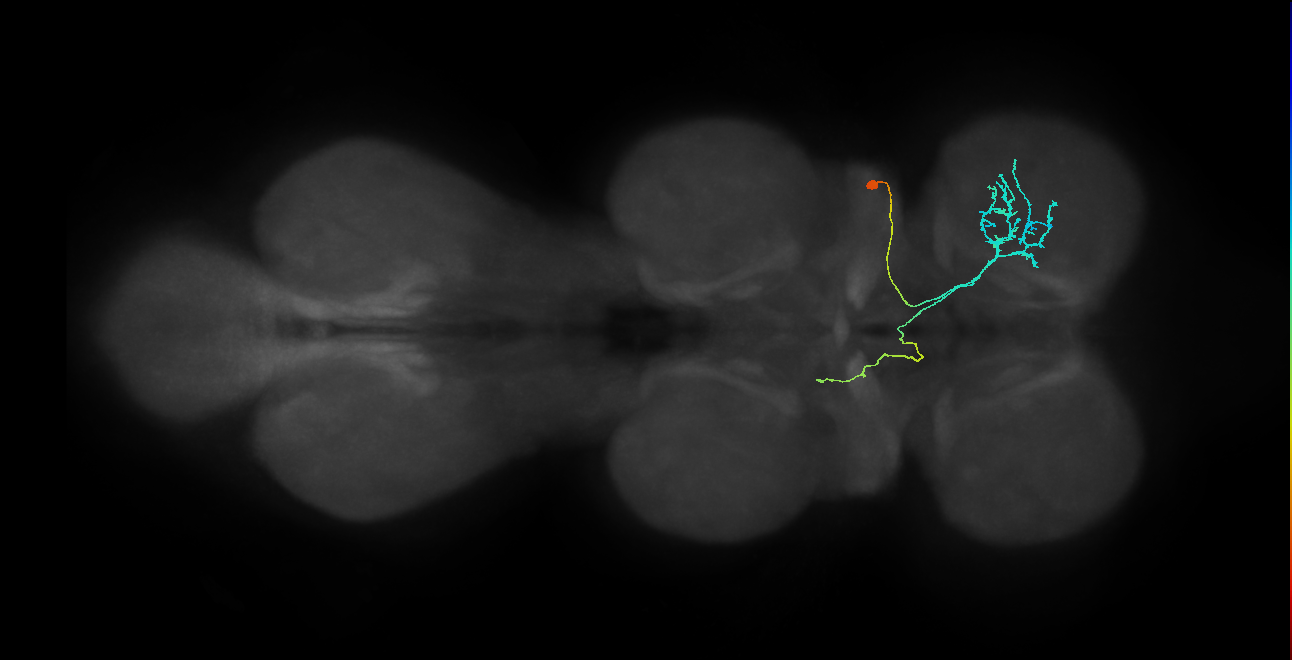

IN23B070_R (MaleCNS:909178) [VFB_jrmc2ocg]

IN23B070_R (MaleCNS:909178)

ID: VFB_jrmc2ocg

Adult Cholinergic lineage 23 NB7-4 secondary neuron

male-cns annotations: superclass - vnc_intrinsic, subclass - BR, type - IN23B070, mancType - IN23B070.

Open in VFB 3D Browser →

Classification

• adult IN23B070 neuron
• adult VNC neuron
• prothoracic neuron

Relationships

• capable of: acetylcholine secretion, neurotransmission
• develops from: neuroblast NB7-4
• has soma location: adult prothoracic neuromere, right side of organism
• is part of: adult nervous system

Cross References

• IN23B070_R (MaleCNS:909178) on Neuprint web interface - male-cns:v0.9 (909178)

Imaging Technique

• serial block face SEM (SBFSEM)

License

• CC-BY_4.0 — Source: Male CNS version 0.9 connectome neurons from Berg et al. (2025).

Downloads

Image files aligned to IN23B070_R (MaleCNS:909178):

• Pointcloud (OBJ)
• Skeleton (SWC)
• Slices (Woolz)
• Signal (NRRD)
